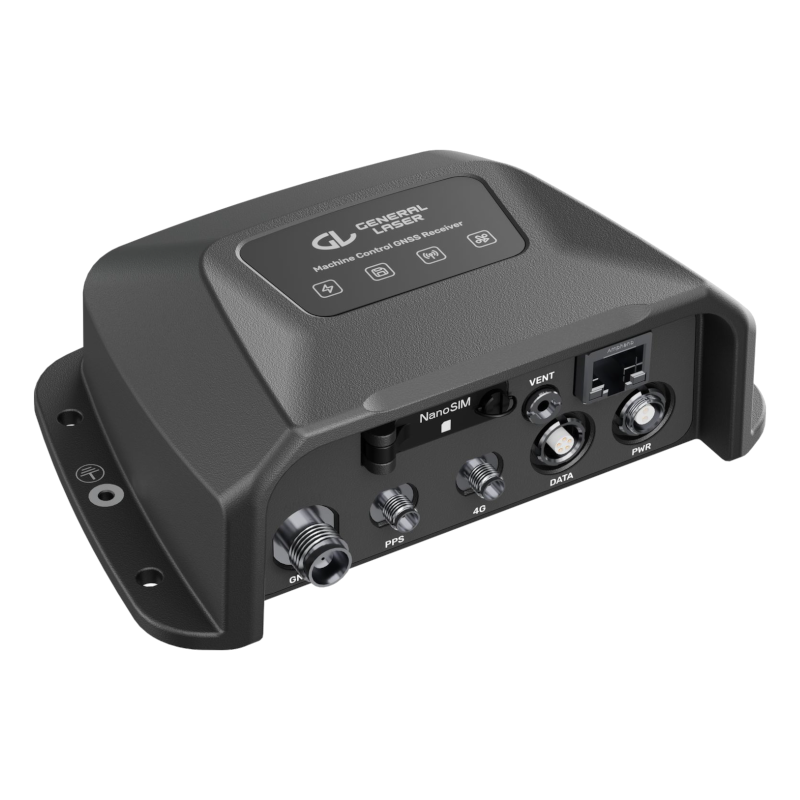

GLMC 1

GNSS Receiver, Base Station, Machine Control

Flyer | Manuals & Integration

Verkaufspreis 2517,60 €
Netto Verkaufspreis 2098,00 €
Preisnachlass
Steuerbetrag 419,60 €
Standardisierter Preis / kg:
Beschreibung

ORDER NOW!

Cost-effective and ruggedized GNSS receivers with Linux operating system, many different interface types and communication methods supporting large capacity data storage.



  • All constellations & all frequencies
  • Comprehensive network coverage and compatible with global network providers
  • Safe encrypted data & cloud management
  • Heading with dual antenna (GLMC 2 only)
  • Many hardware interfaces and a variety of protocols
  • Intelligent Linux OS and flexible route management



Specifications

System
Hardware System ARM Cortex-A7 1.8 GHz
OS Linux

GNSS
GPS (GLMC 1) L1 C/A, L1C, L2P(Y), L2C, L5
GPS (GLMC 2) L1 C/A, L2P/L2C, L5
GLONASS (GLMC 1) L1, L2, L3
GLONASS (GLMC 2) L1, L2
BDS (GLMC 1) B1I, B2I, B3I, B1C, B2a, B2b(PPP)
BDS (GLMC 2) B1l, B2I, B3I, B1C, B2b(PPP)
GALILEO E1, E5a, E5b, E6(PPP)
QZSS L1, L2, L5
SBAS (GLMC 1) L1(PPP)
SBAS (GLMC 2) L1C/A
NavIC (IRNSS)
(GLMC 1 only)		 L5 (IRNSS support in future)
Channel 1408
Differential Observation
Accuracy (RMS)		 10.0 cm
Kinematic Phase
Observation Accuracy (RMS)		 1.0 cm
Data Format RINEX, Custom
Position Data NMEA-0183
Differential Data RTCM 3.X
Data Update Frequency 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Receive Data Availability ≥98%
(Data available/Data collected)
Data Integrity ≥98% (Data collected/
Data should be collected)
Single (RMS) Horizontal: 1.5 m / Vertical: 2.5 m
RTK (RMS) Horizontal: ± (8 mm + 1 ppm)
Vertical: ± (15 mm + 1 ppm)
Static Accuracy (RMS) Horizontal: ± (2.5 mm + 0.5 ppm)
Vertical: ± (5 mm + 0.5 ppm)
Timing Accuracy (RMS) 20 ns
Heading Accuracy (RMS)
(GLMC 2 only)		 0.2°/m

System
Serial port Standard RS232 interface,
Baud rate supports 1200, 2400,
4800, 9600, 19200, 38400,
115200, 230400 bps
USB Integrated on the 7-pin interface,
support access to the computer to
copy data directly
Network port Standard RJ45 interface,
10/100 Mbps network adaptive
Network Communication
(Full Netcom)		 LTE FDD: B1/2/3/4/5/7/8/12/13/
18/19/20/25/26/28
LTE TDD: B38/39/40/41
WCDMA: B1/2/4/5/6/8/19
GSM: B2/3/5/8
Interface PWE✗1: Power supply port,
DATA✗1, PPS✗1,
SIM✗1: Nano SIM card,
Ethernet✗1,
4G✗1: 4G antenna port,
GNSS✗1: main antenna (GLMC 1) /
GNSS✗2: TCN port (GLMC 2)
Storage 32GB, circular storage,
support multi-channel storage

Electrical
Voltage Input 9-24 VDC (12 V typical)
Power Dissipation (GLMC 1)
Power Dissipation (GLMC 2)		 1.8 W (typ)
2 W (typ)

Environment
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Ingress Protection IP68

Physical
Material Magnesium alloy main body
Dimension 148.8 ✗ 105 ✗ 50.3 mm
Weight 490 g

* Errors and technical modification subject to change.
