MindPalace Pocket

LiDAR Scanner from Manifold Tech
Flyer | Forum
Beschreibung

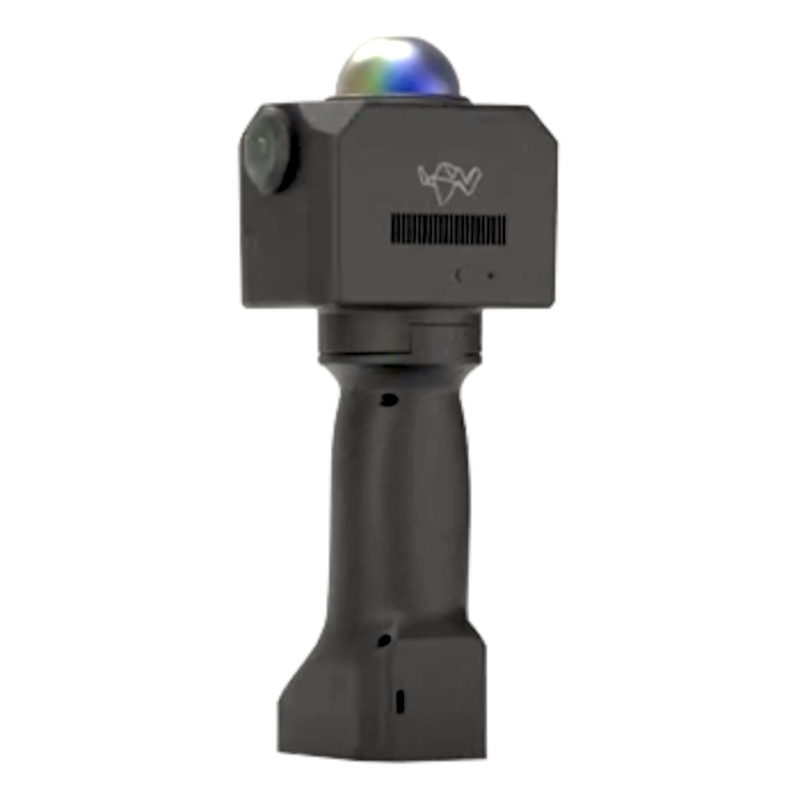

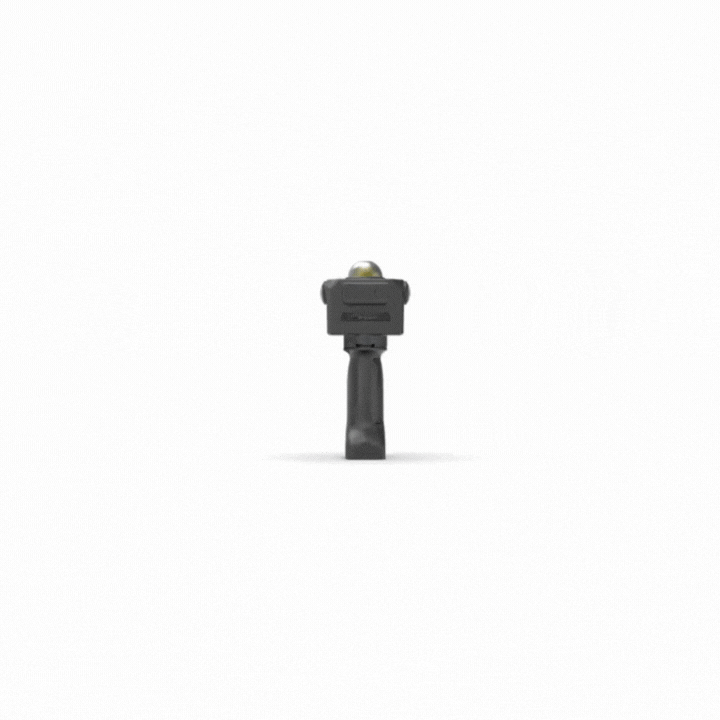

MindPalace Pocket

Modular 3D Data Collection Device



Whether you are a seasoned laser scanning professional or just 3D-curious, a walk around the site with the P1 lets you digitize your environment quickly and accurately.



40M

1CM

0°

560G

RGB

2H

Radius Range

 Precision

Rotation Structure

 Weight

Global Shutter

 Battery



Key Features

Dual Industrial - Grade Global Shutter Cameras



Capture true-color, wide-angle images at 5 megapixels, eliminating motion blur thanks to advanced global shutter technology.

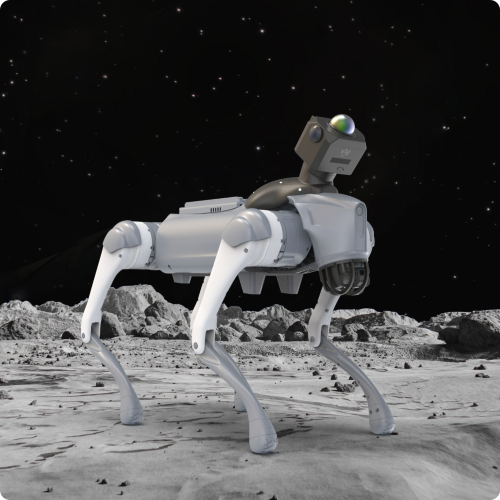

Portable and Lightweight

Weighs only 560g, enabling stress-free handheld operation or seamless integration with robotic platforms.

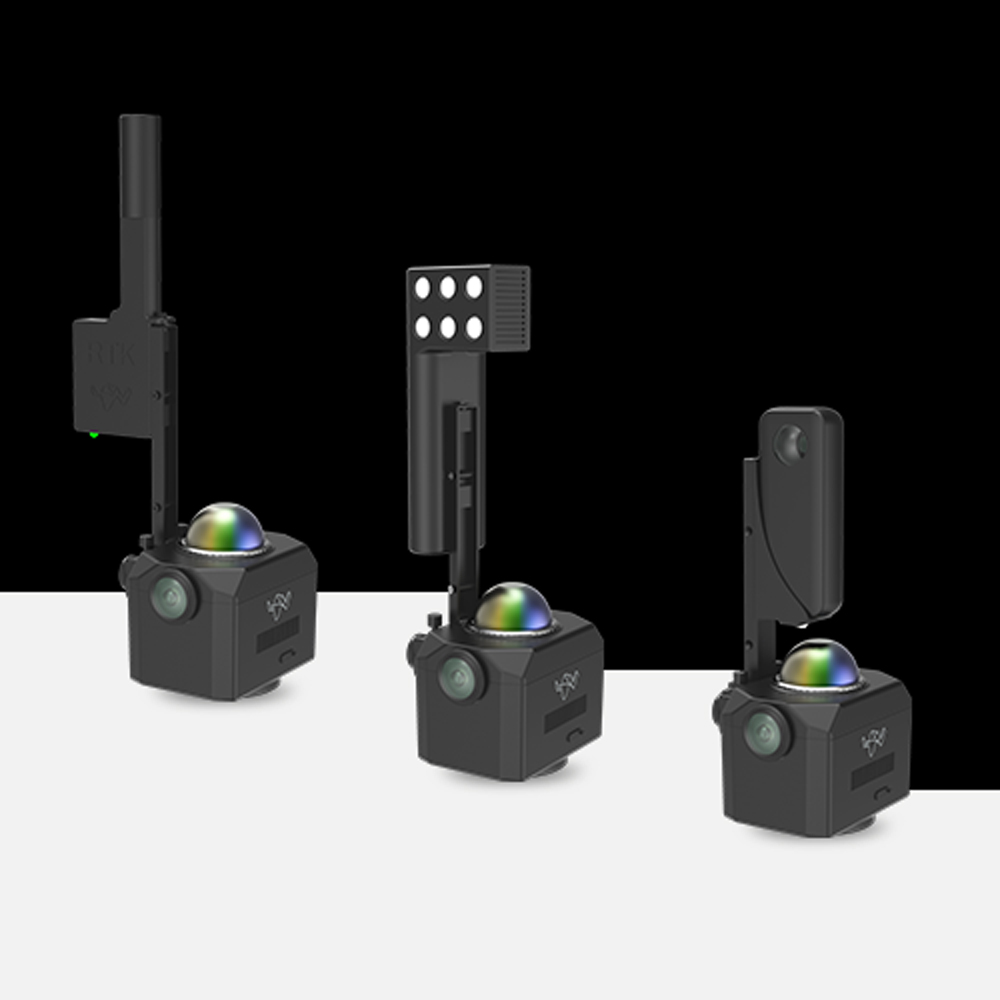

Modular Design



Equipped with hot shoe mounts and a type-C interface to support external payloads like robots, panoramic cameras, or RTK systems.

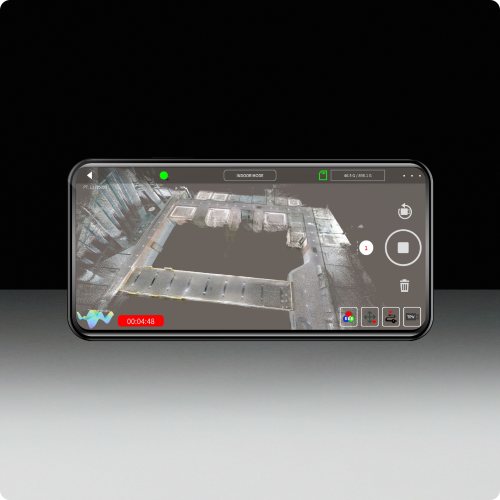

Real-Time Data

Instantly preview point cloud data through the MindCloud-GO app for efficient, on-the-fly modifications.

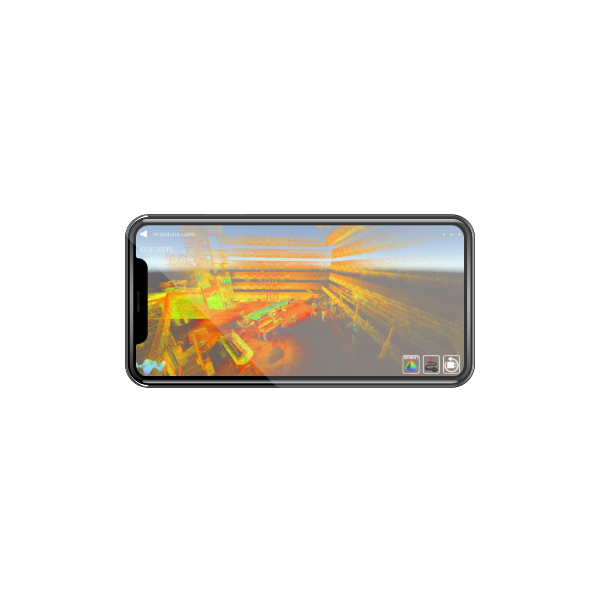

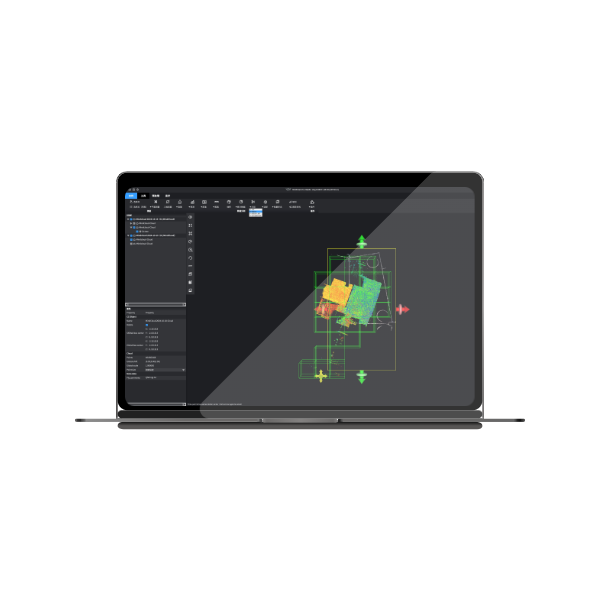

Real-time Rendering Editing



Technical Specs

Laser Wavelength:

905 nm

Laser Range:

Up to 40 m @ 10% reflectivity,

70 m @ 80% reflectivity

LiDAR Point Cloud Density:

40 lines

LiDAR Point Rate:

200,000 points/s (first return)

LiDAR Frame Rate:

10 Hz

Cameras:

Dual Fisheye 5 Megapixel

Global Shutter Camera

Battery Life:

2 hours

Dimensions (Main Unit):

115 mm X 110 mm X 83 mm

Weight:

560 g
